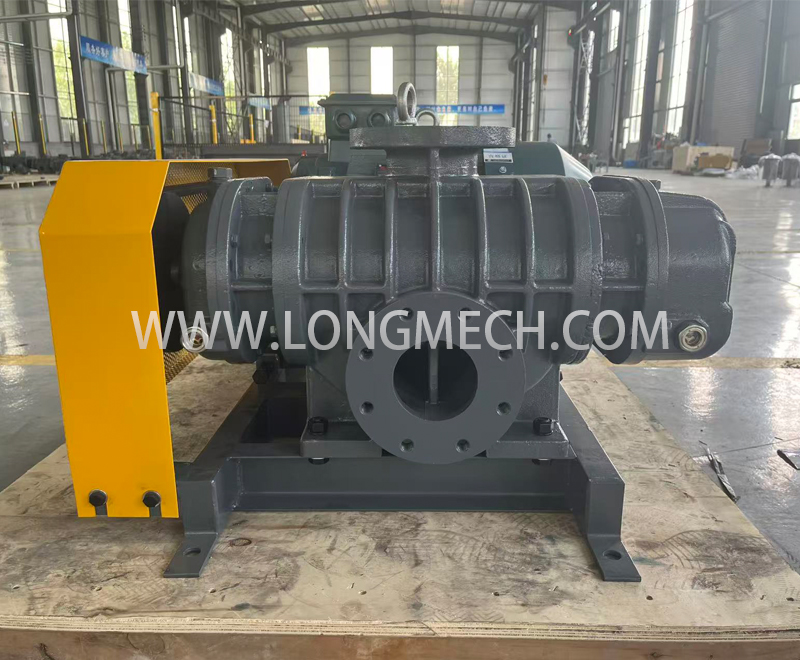

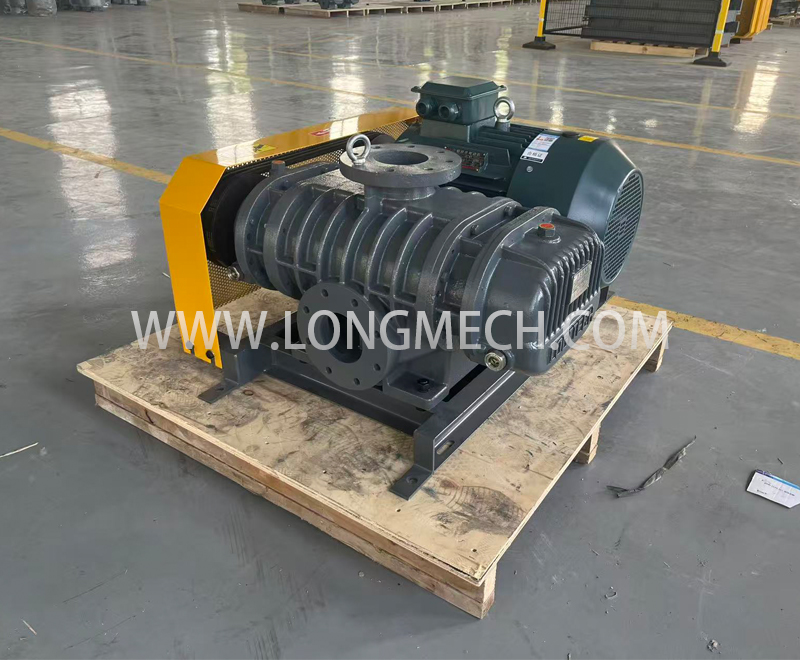

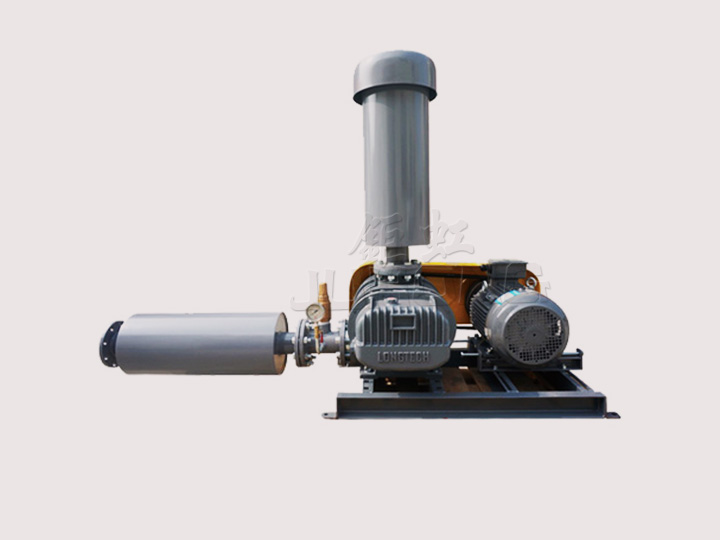

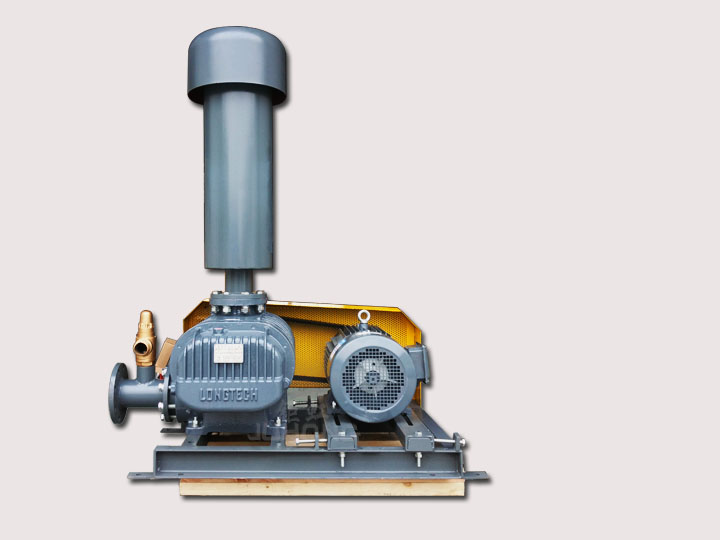

LT series Roots blower
Manufacturer: Longmech Machinery CO.,LTD
Place of Origin: China
Product Name: Roots blower
Product Model: LT-100
Pressure: Postive pressure
Pressure range: 0 ~ 8000 mmAq
Flow range: 2.74 ~ 13.36 m³/min
Adapted motor: 7.5 ~ 25 HP
Noise range: Contact us
performance curve: Contact us
Overall dimensions: Contact us
Applicable Industries: Wastewater treatment, aquaculture, electricity, iron and steel metallurgy, chemical industry, petroleum, building materials, grain processing, food, medicine, electroplating, printing and dyeing, paper making, cement, minerals, environmental protection waste gas treatment, pneumatic conveying, incinerator, tunnel engineering, plastics, glass manufacturing, oil and gas recovery, vacuum packaging, printing, wood processing, etc
Category：Roots blowers
Introduction
Postive displacement blower stages series LT
LONGMECH Positive Displacement Blowers are highly developed standard production machines designed and adapted to find use in a wide variety of applications. Robust 3-lobe blower stage for plant engineering. Suitable for a wide range of applications.
Why you choose LONGMECH three-lobe Roots Blower?
1.LOWER ENERGY CONSUMPTION
Three-lobe design controls pressure of rotor to reduce energy consumption.
2.LOWER NOISE
Pressure pluse is the major noise sourece of blower
Three-lobe design can efficiently reduce noise by approximately 5dB.
What noise levels should expect?
Standard units operate around 80–85 dB(A). Acoustic enclosures are available to reduce noise further.
3.LONGER BEARING LIFE
Less vibration transmitted though the lobe extend 20% longer bearing life.
LT type PERFORMANCE TABLE (FOR PRESSURE)
| TYPE | CALIBER | PRESSURE mmAq | FLOW m³ /min | MOTOR (HP) |
| LT-050 | 2″ | 0 ~8000 | 0.15 ~ 2.92 | 2 ~ 7.5 |
| LT-065 | 2.5″ | 0 ~8000 | 1.09 ~ 5.17 | 3 ~ 10 |
| LT-080 | 3″ | 0 ~8000 | 1.28 ~ 8.64 | 5 ~ 20 |
| LT-100 | 4″ | 0 ~8000 | 2.74 ~ 13.36 | 7.5 ~ 25 |
| LT-125 | 5″ | 0 ~8000 | 5.65 ~ 24.66 | 10 ~ 40 |
| LT-150 | 6″ | 0 ~8000 | 9.61 ~ 31.84 | 15 ~ 50 |
| LT-200 | 8″ | 0 ~8000 | 11.98 ~ 51.03 | 25 ~ 75 |
| LT-250 | 10″ | 0 ~8000 | 19.98 ~ 79.70 | 30 ~ 125 |
| LT-300 | 12″ | 0 ~8000 | 46.70 ~ 159.0 | 60 ~ 250 |
| LT-350 | 14″ | 0 ~8000 | 100.3 ~ 291.3 | 100~500 |
| LT-400 | 16″ | 0 ~8000 | 208.8 ~ 362.5 | 150~600 |
applications
Water and waste water treatment
Pneumatic conveyance of bulk materials
Aeration
Filter backwashing
Gas conveyance
Degassing
Dust removal
Vacuum production
Biogas treatment
Air separation plant
and many others
Industries:
Sewage treatment
Chemical and process technology
Power plants
Cement and lime
Foodstuffs
Paper
and many others
